Capacity

600 auditions

Stage

8 x 6 m, height 1 m, clear height app. 3 m, le; & right side closed,

Black backdrop covering en(re width and both sides,

Drum riser elements 1x2m (7) and 0,5x2m (3) available, height 40cm

Distance downstage/house FOH approx. 12m

House PA

6 x RCF HDL 20-A

4 x dB Technologies DVA S2585N cardioid subs

2 x dB Technologies DVX D12 HP nearfills

2 x dB Technologies DVX D10 HP delay line

Dbx Venu360 (remote control prepared)

House Desk

Multicores

Allen & Heath dLive C3500 (latest so;ware, remote control prepared)

Multicores

FOH house posi(on digital, CAT5e, 2x

FOH alternate posi(on digital (Distance approx 20m), CAT5e,
1x2x12 in/4out, 1x8 in, 1x8 in/4 out analogue subcores on stage

Stagebox

Allen & Heath CDM32 digital, 32 inputs – 16 returns (3 for PA, 13 monitor mixes possible)

Drive

1 x CD player, USB media player, beamer & motor screen (downstage!)

available, video inputs VGA (downstage) & HDMI (FOH)

Monitors

8 x wedges RCF TT20-CXA (ac(ve)

4 x wedges RCF TT25-CXA (ac(ve)

2 x sidefills JBL PRX 615M (ac(ve) on stands

1 x drumfill DAS Audio 18“-Sub with wedge

Monitor desk

Soundcra; Si Performer 2 (latest so;ware, remote control prepared,
USB mul(track recording prepared, Dante® digital split prepared);

32 channel analogue splieer available; no intercom!

Microphones and DI

2 x Shure GLXD24E/SM58 wireless system with spare baeery packs

5 x Shure SM 58

8 x Shure SM 57

8 x Sennheiser e604

2 x Sennheiser e906

6 x MBNM 440 CL

1 x Shure Beta 91A

2 x Shure Beta 52A

6 x Palmer PAN01 passive DI, 6 x Palmer PAN02 ac(ve DI

1 x Palmer PAN04 stereo passive DI

4 x SMPRO DJDI stereo passive DI

1 x SMPRO DI8E ac(ve mul( DI / line mixer

2 x Radial Engineering IC-1 IceCube line isolator box

Stands and cables (XLR)

Light console

various sizes & lengths, available in sufficient quan(ty; no jack cables!

grandMA2 onPC + CommandWing (patch plan sent separately)

2 x DMX Splieer, each with one free DMX-Port (3-/5-pole)

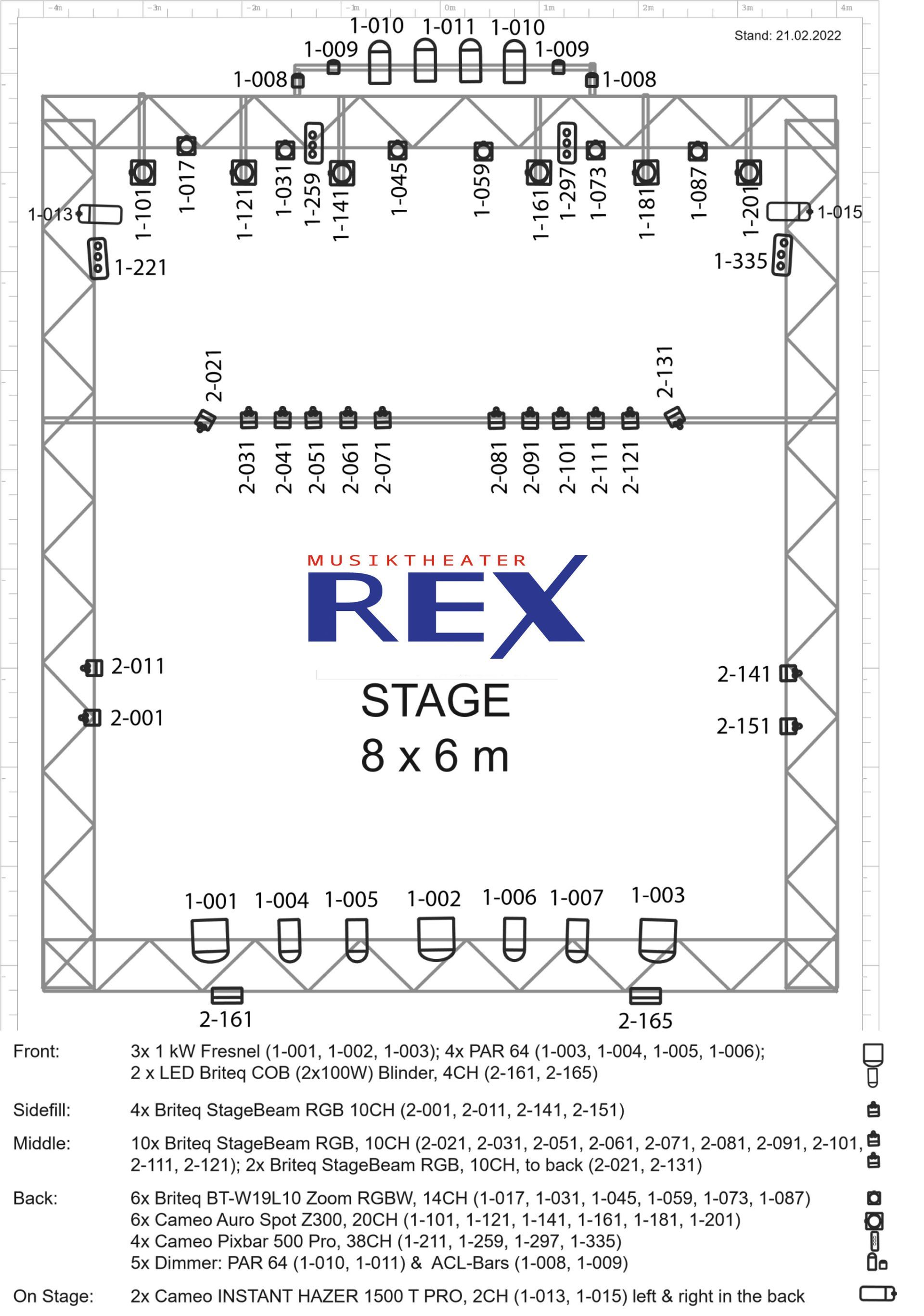

Lights front truss

3 x 1 kW fresnel

4 x PAR 64

2 x LED Briteq COB 2 x 100W blinde bars

Lights center truss

16 x Briteq Stage Beamer RGB Mk2

Lights back truss

6 x moving head spot Cameo Auro Spot Z 300

6 x moving head wash Briteq BT W19 L10 zoom RGBW

4 x 6 segment pixel bars RGBWA+UV Cameo CLPIXBAR500PRO

2 x 2 PAR 64

2 x 2 x 4 pin spots (ACL)

Hazers

2 x 2 x 4 pin spots (ACL)

Hazers 1 x DMX controllable hazer with extrta fan
